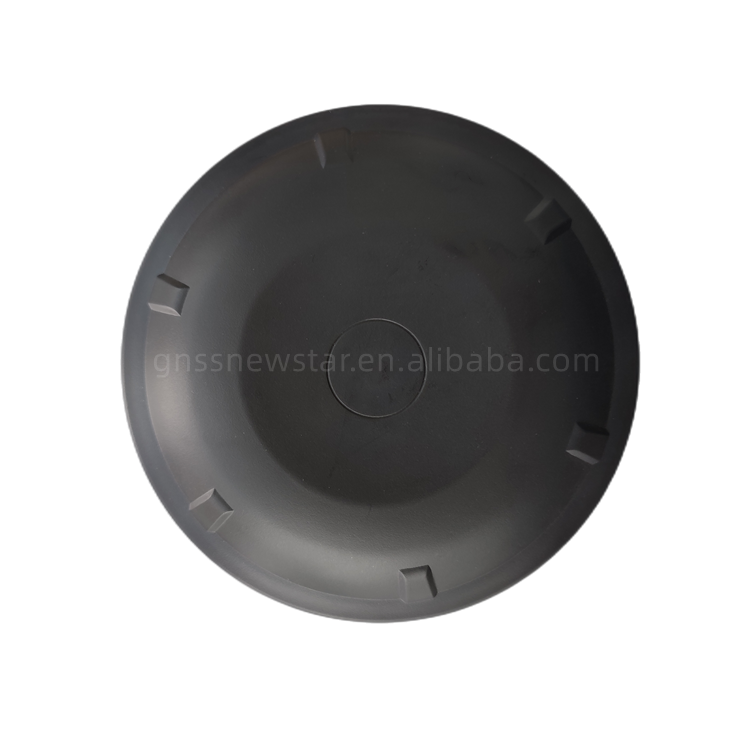

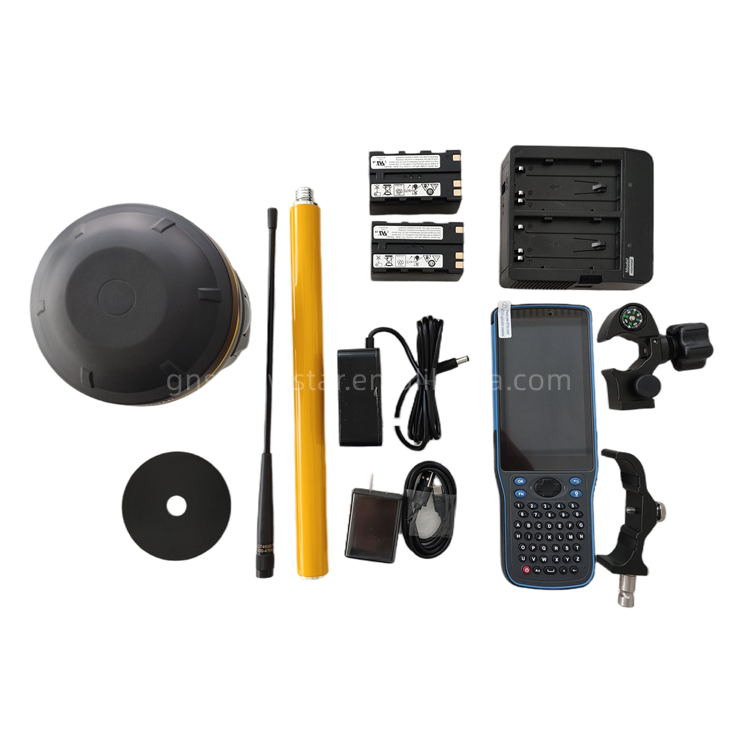

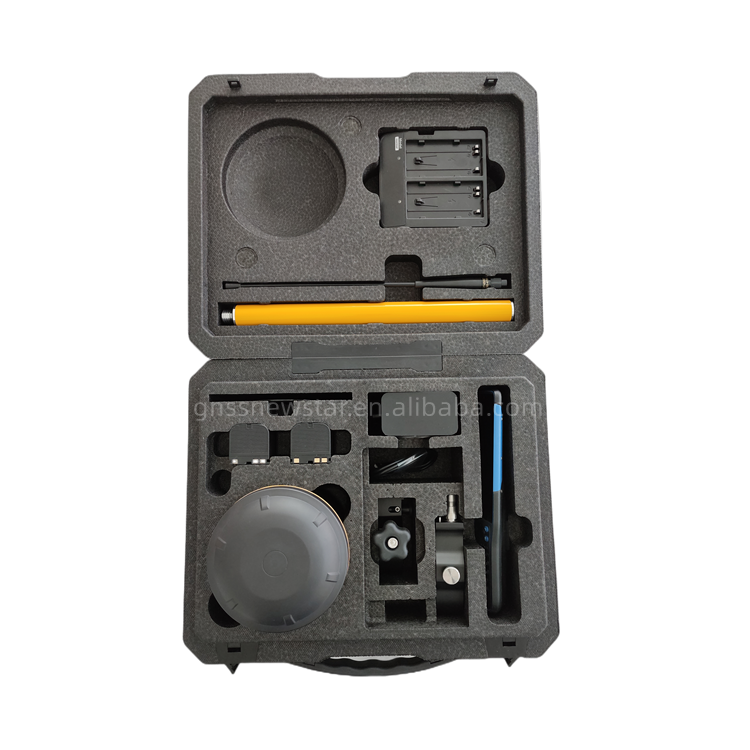

H6

Place of Origin: China
Essential details
Customized support:
OEM
Place of Origin:
Tianjin, China
Brand Name:
GNSS NEW STAR
Model Number:
H6
Linux operating system:
satellite tracking 432 channels


  • Features
  • Parameters
Essential details
Customized support:
OEM
Place of Origin:
Tianjin, China
Brand Name:
GNSS NEW STAR
Model Number:
H6
Linux operating system:
satellite tracking 432 channels


H6
Satellite tracking and positioning accuracy
GPS
L1C/A,L1C,L2C,L2E,L5
GLONASS
L1C/A,L1P,L2C/A,L3
BDS
B1, B2, B3
GALILEO
E1,E5AltBOC,E5A,E5B,E6
Star-based augmentation
IRNSS L5,SBAS LiC/A,L5,QZSS,WAAS,MSAS,GAGAN
L-band
TerraStar,RTK ASSIST
static precision
Plane accuracy: +(2.5+0.5x 10 D)mm(D is the distance between the measured points), Elevation accuracy: +(5+0.5x10"D)mm(D is the
distance between the measured points)
RTK accuracy
Plane accuracy: +(8+1x10 D)mm (D is the distance between the measured points), Elevation accuracy: +(15+1x10 'D)mm (D is the
distance between the measured points)
Single machine accuracy
1.5m
code difference
Plane accuracy: +(0.25+1x10 D)m (D is the distance between the measured points), elevation accuracy: +(0.50+1x10°D)m (D is the
distance between the measured points)
Offset measurement
Patented offset measurement technology: without any sensor, supports large-scale offset correction measurement in hidden areas
(intersection angle> 30°, accuracy <+2.0cm)
CORS relay
Radio relay, network relay
display
1.54 inches, high brightness, low power
button
1 power button (OK button), 2 selection buttons
indicator light
1 battery light, 1 differential light, 1 satellite light
voice
Humanized voice prompt
Host battery
Replaceable high-capacity lithium battery, the working time of a single battery mobile station can reach 12 hours
System Configuration
Operating system
Linux operating system
satellite tracking
satellite tracking 432 channels
Startup time
<4秒
Positioning output frequency
1Hz ~ 50Hz
data storage
8G、16G、 32Gmass storage
data communication
Built-in radio
Power: 1w, 2w, 5w adjustable, the distance can be up to 10km. Frequency band: 410MHz -470MHz; the frequency value can be set
arbitrarily, with the function of forwarding CORS differential data; the radio is compatible with domestic mainstream brands.
Plug-in radio
30-35W, frequency band: 410MHz -470MHz; number of channels: 8, the distance can be up to 30km.
4G module
Built-in high-gain GPRS antenna, can also be used as data link without external antenna
WIFI
With hotspot function; the host connects to nearby Wif hotspots to transmit differential signals
Bluetooth
BLEbluetooth 4.0 low energy bluetooth, control distance up to 50 meters
Differential format
sCMRx、RTCM3.2、 CMR、RTCM3.x optional
I/Ointerface
1 five-pin LEMO data interface: support power supply, serial port control to download data, external radio data transmission, 1
micro USB interface: USB cable to connect computer to copy static data, upload upgrade files, insert OTG U disk to copy data. 1
SIM card slot (small card), 1 antenna interface: UHF built-in radio antenna
physical properties
material
Magnesium alloy (passed 96 hours salt spray test)
size
Φ130mmx 110mm (including connection base 126mm )
weight
1.0kg (1.2kg with battery)
Operating temperature
-40°C to 65°C
Anti-drop
Resist 2 meters drop with the pole
humidity
100% resistant to condensation
water proof
1 meter immersion underwater
