C6
Place of Origin: China
Essential details
- Warranty:
1 year
- Customized support:
ODM
- Place of Origin:
Tianjin, China
- Brand Name:
TIAN YU
- Model Number:
C6
Essential details
- Warranty:
1 year
- Customized support:
ODM
- Place of Origin:
Tianjin, China
- Brand Name:
TIAN YU
- Model Number:
C6

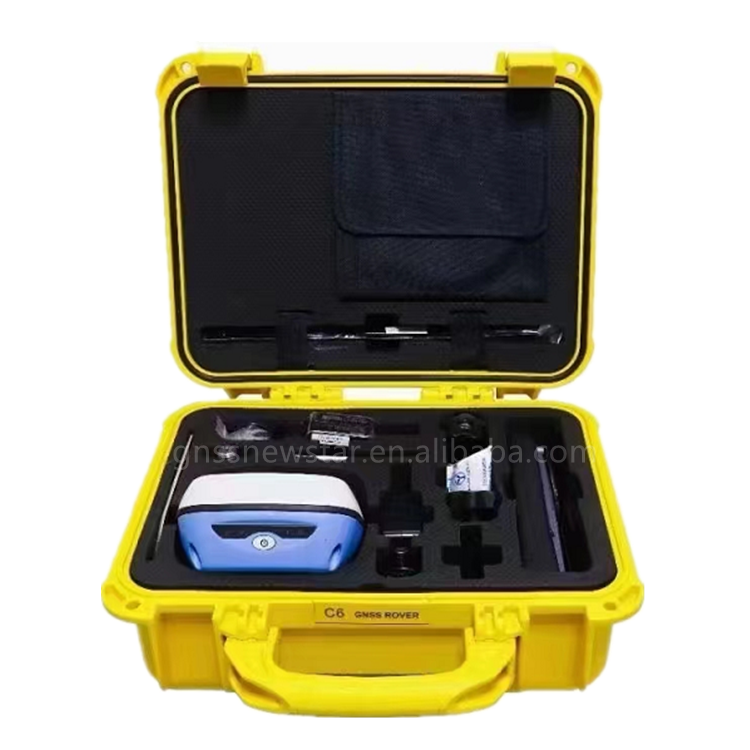

C6 GNSS RECEIVER |
Technical Specificat |
Channels | 965 |
GPS Tracking | L1,L1C,L2C,L2P,L5 |
GLONASS Tracking | G1,G2 |
BeiDou Tracking | B1,B2,B3 |
Galileo Tracking | E1,E5A,E5B,AltBOC |
QZSS | L1,L2C,L5 |
SBAS | L1* |
IRNSS | L5* |
Positoning Rate | 1-20Hz |
RECEIVER ACCURACY |
Code Differential | Horizontal 0.25m±1ppm (rms) |
Vertical 0.50m±1ppm (rms) |
Static | Horizontal 2.5mm±0.5ppm (rms) |
Vertical 5mm±0.5ppm (rms) |
Real-Time Kinematic | Horizontal 8mm±1ppm (rms) |
Vertical 15mm±1ppm (rms) |
Network RTK | Horizontal 8mm±0.5ppm (rms) |
*By controller | Vertical 15mm±0.5ppm (rms) |
IMUMEASURIMUEMENT |
Tilt Range | Up to 60° |
Accuracy | <2cm(within 30°) |
<5cm(within 60°) |
COMMUNICATION |
I/O | 5pin LEMO external power + RS232 |
7pin LEMO USB (OTG) + Ethernet |
Radio antenna interface |
UHF Radio Module | X-link 1W |
410-470MHz |
Protocol | TrimTalk 450s, TrimMark3, |
PCC EOT, SOUTH |
WIFI | 802.11b/g/n |
Hotspot |
Data Link |
Bluetooth | Bluetooth 2.1 +EDR and 4.0 |
NFC | <10cm |
INTERFACES |
Button | One |
LED Indicator | Bluetooth, Data Link, Satellite, |
| Power |
DATASTORAGE |
Type & Storage | SSD 8GB |
External USB pen drive |
Date Transfer | USB transfer |
Supports FTP/HTTP download |
Format (Differential) | CMR+, sCRMx, RTCM 2.1, RTCM 2.3, |
RTCM 3.0, RTCM 3.1, RTCM 3.2 |
GPS Output Format | NMEA 0183, PJK plane coord., |
binary code, Trimble GSOF |
VRS, FKP, MAC |
Network Model | NTRIP fully supportable |
POWERSUPPLY |
Battery | Internal Li-on, 6800mAh, 3.7V |
PowerCase supported |
Operating Time | Static mode 8h |
Rover mode 6h |
PHYSICAL |
Dimension | 85mm (H), 135mm (W) |
Weight with batt. | 970g |
Operating Temp. | -45°C to 60°C |
Protection Class | IP67 |
Shock | 2m drop on hard surface |
Vibration | 40G 10ms sawtooth wave |
