N70

Place of Origin: China
Essential details
Warranty:
1 year
Customized support:
OEM
Place of Origin:
China
Brand Name:
GNSS NEW STAR
Model Number:
N70


  • Features
  • Parameters
Essential details
Warranty:
1 year
Customized support:
OEM
Place of Origin:
China
Brand Name:
GNSS NEW STAR
Model Number:
N70

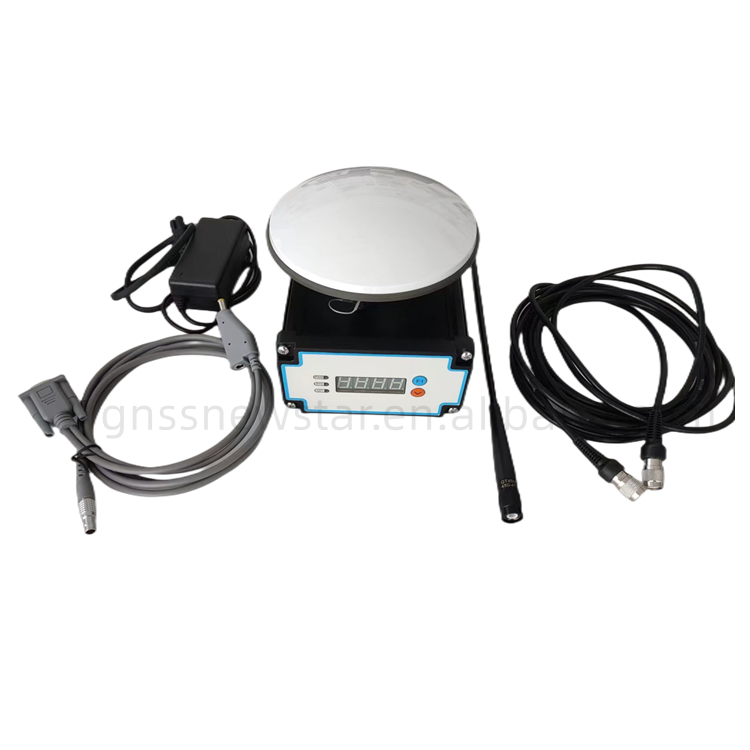

Trimble Board BD970/BD990 GNSS receiver base station and rover station for machine control and Survey Cors Station

N70 GNSS RECEIVER (BD970)

Technical Specifications
Technical Specifications
Signal tracking 220 channels
– GPS: Simultaneous L1 C/A, L2E, L2C, L5
– GLONASS: Simultaneous L1 C/A, L1 P, L2P, L2C/A (GLONASS M only), L2 P
– SBAS: Simultaneous L1Boc, E5A, E5B, E5AltBOC
– Beidou: B1, B2
– QZSS:L1C/A,L1SAIF,L2C,L5
Positioning Specifications
Static Accuracy:
Horizontal: ±(2.5+1×10-6×D)mm
Vertical: ±(5+1×10-6×D)mm
RTK Accuracy:
Horizontal: ±(10+1×10-6×D)mm
Vertical: ±(20+1×10-6×D)mm
Initialization time: <10 seconds
Electrical Characteristics
Built-in radio: 2W transceiver integrated radio, protocol 410-470Mhz, protocol support; TRANSEOT/TRIMTALK;
Channel spacing: 12.5KHZ-25KHZ;

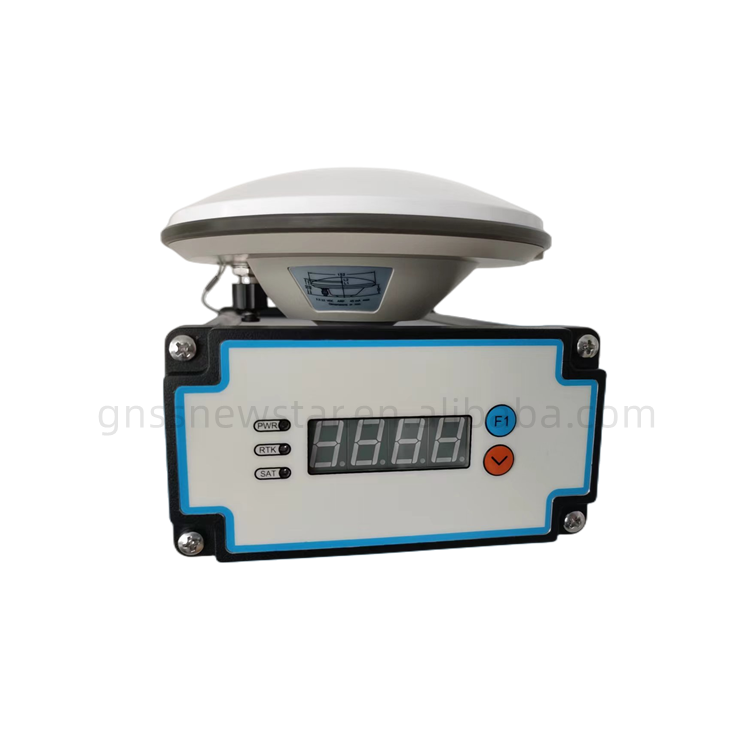

Digital display: It can display the working frequency, protocol and working voltage of the radio station;
Keys: two physical keys, one confirmation key and one selection key;
Host computer: The frequency, protocol and channel interval of the receiver can be modified through the computer;
Indicator light: 3 LED indicators (power light/star search light/data transmission);
Operating voltage: 9-24V

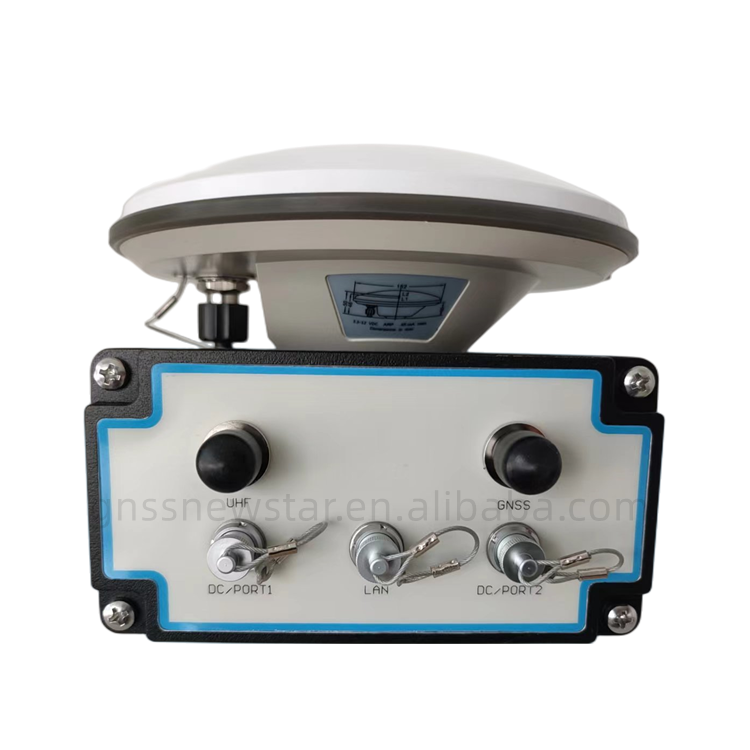

Communication Interface:
2 RS232 ports, 2 external power ports, 1 Ethernet port
RF interface:1 GNSS antenna interface, 1 UHF antenna interface
Differential format support: CMR/CMR+/RTCM 2.1, 2.2, 2.3, 3.0, 3.1
Positioning output: 1Hz, 2Hz, 5Hz, 10Hz, 50Hz
Output format support: ASCII: NMEA-0183 and Binary: Trimble GSOF
Communication protocol RS232, TCP/IP
physical properties
Dimensions: 213mm x 119mm x 73mm
Weight: 1.2 kg receiver (including built-in radio)
Working temperature: - 40-70 ℃
Storage temperature: - 45-75℃
Humidity: 95% anti-condensation
Waterproof and dustproof: IP67
Shock Vibration: Resists free fall of one meter
