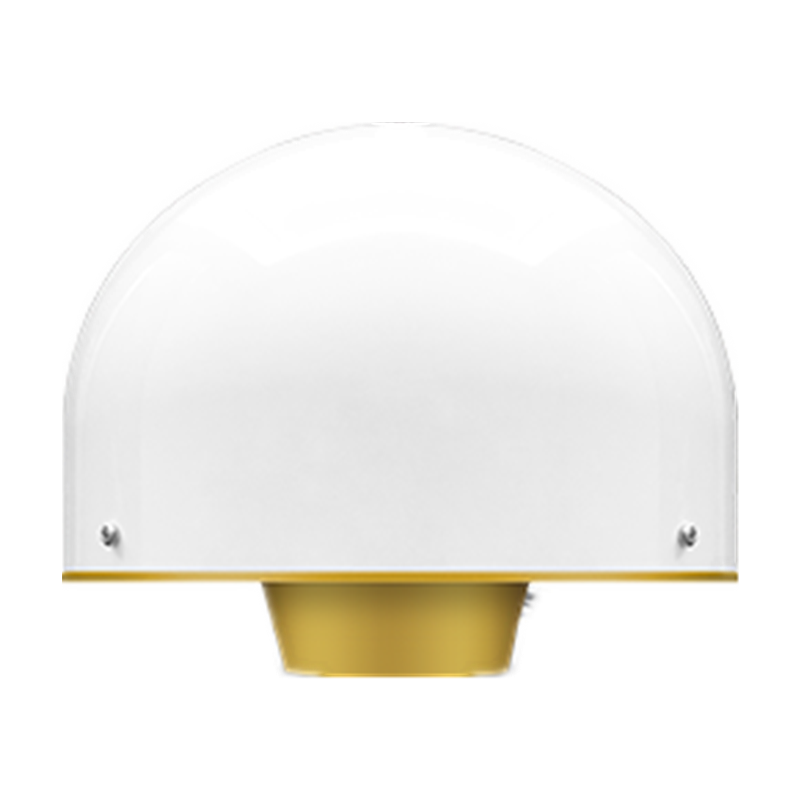

Small Base Station Antenna
Place of Origin： China
The small reference station antenna is a four-system full-frequency small choke antenna covering BDS, GPS, GLONASS, and GALILEO, which meets the requirements of current measurement equipment for high precision and multi-system compatibility. It can be widely used in high-precision occasions such as geodetic surveying and mapping, ocean surveying, waterway surveying, dredging surveying, earthquake monitoring, bridge deformation monitoring, landslide monitoring, and terminal container operations.
- Features
- Parameters
- Application
1. The accuracy of the phase center reaches the millimeter level, and the phase center has high stability and good repeatability;
2. Using choke structure design to achieve excellent multi-path suppression effect;
3. The antenna has high gain at low elevation angles, and has strong tracking ability to low elevation angle satellites, ensuring that the number of available
satellites in the system is sufficient;
4. The low noise amplifier has high gain, and the cable length can be more than 100 meters;
5. The unique waterproof and dustproof design ensures that the core components are completely sealed and can work normally outdoors for many years.
Antenna characteristics
Frequency range BDS B1/B2/B3
GPS L1/L2/L5
GLONASS G1/G2
GALILEO E1/E2/E5a/E5b/E6
L-Band
Resistance resistance 50 ohm
Polarization method Right-hand circular polarization
Antenna axis ratio ≤3dB
Horizontal coverage angle 360°
Output standing wave ≤2.0
Maximum gain 6.5dBi
Phase center error ±1mm
Low noise amplifier index
Gain 50 ±2dB
Noise figure ≤2dB
Output standing wave ≤2.0
In-band flatness ±2dB
Working voltage 3.3～12VDC
Working current ≤60mA
Differential transmission delay ≤5ns
Structural characteristics
Antenna size φ185*132mm
Connector form TNC female
Weight 1.9Kg
Installation method 5/8''×11 (inch) threaded mounting hole
working environment
Working temperature -40℃～+85℃
Storage temperature -55℃～+85℃
Humidity 95% non-condensing
It can be widely used in high-precision occasions such as geodetic surveying and mapping, ocean surveying, waterway surveying, dredging surveying, earthquake monitoring, bridge deformation monitoring, landslide monitoring, and terminal container operations.
